U.K. Patent 1868-3517
This mechanical patent was registered by William Avery and Albert Fenton on November 19th, 1868. It covers all lever and
quadruple style needle cases and consists of four drawings and six pages of text. This patent also includes drawings or descriptions
of five additional needle cases that appear not to have been manufactured as no needles cases like these have been found. To review
the details of this patent, select the appropriate page for the list below. Once the page is display, click on it to enlarge the
text. Or a PFD version of the entire patent is available at the bottom of this list.
Drawing 1
Drawing 2

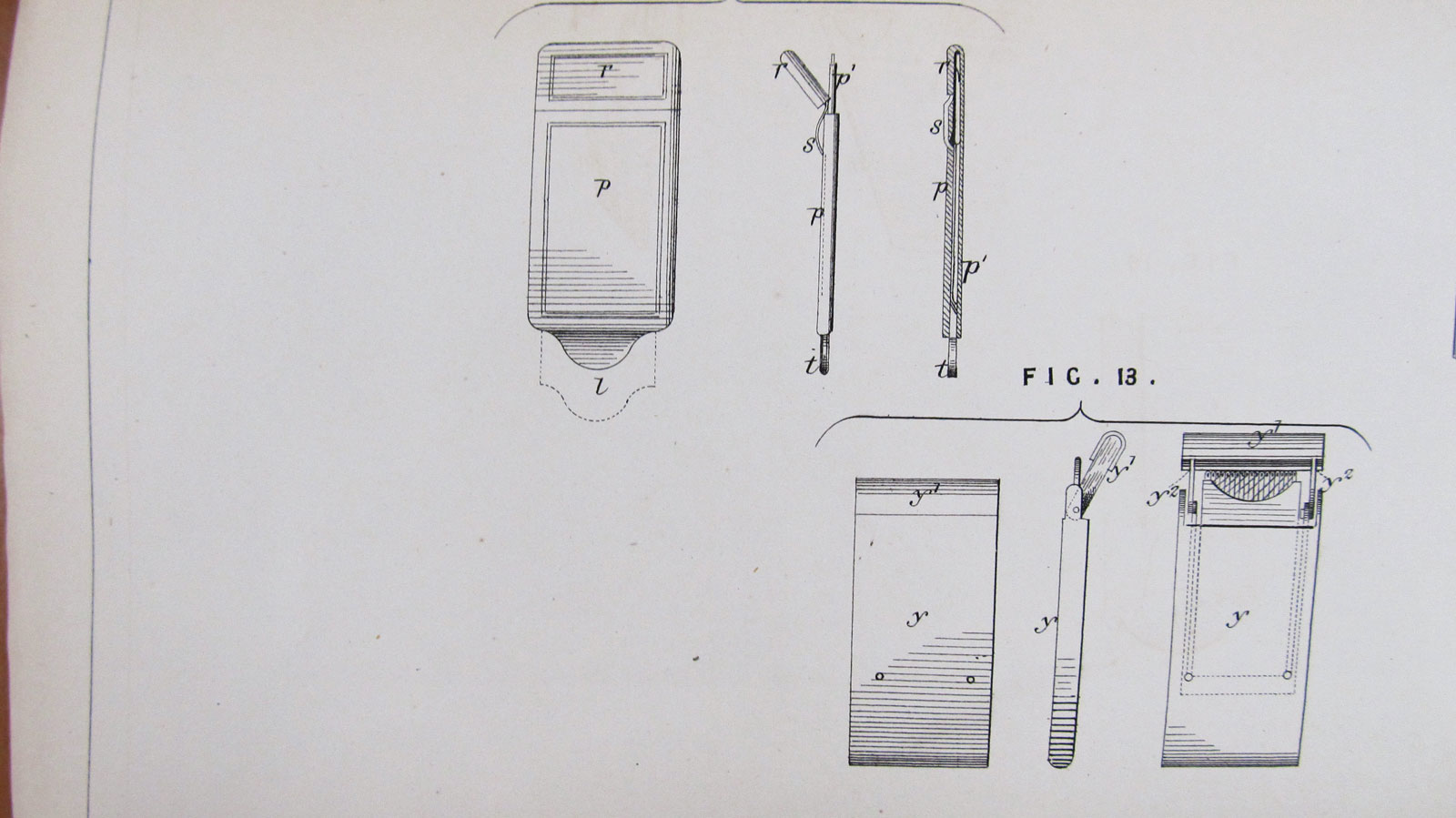

Drawing 3

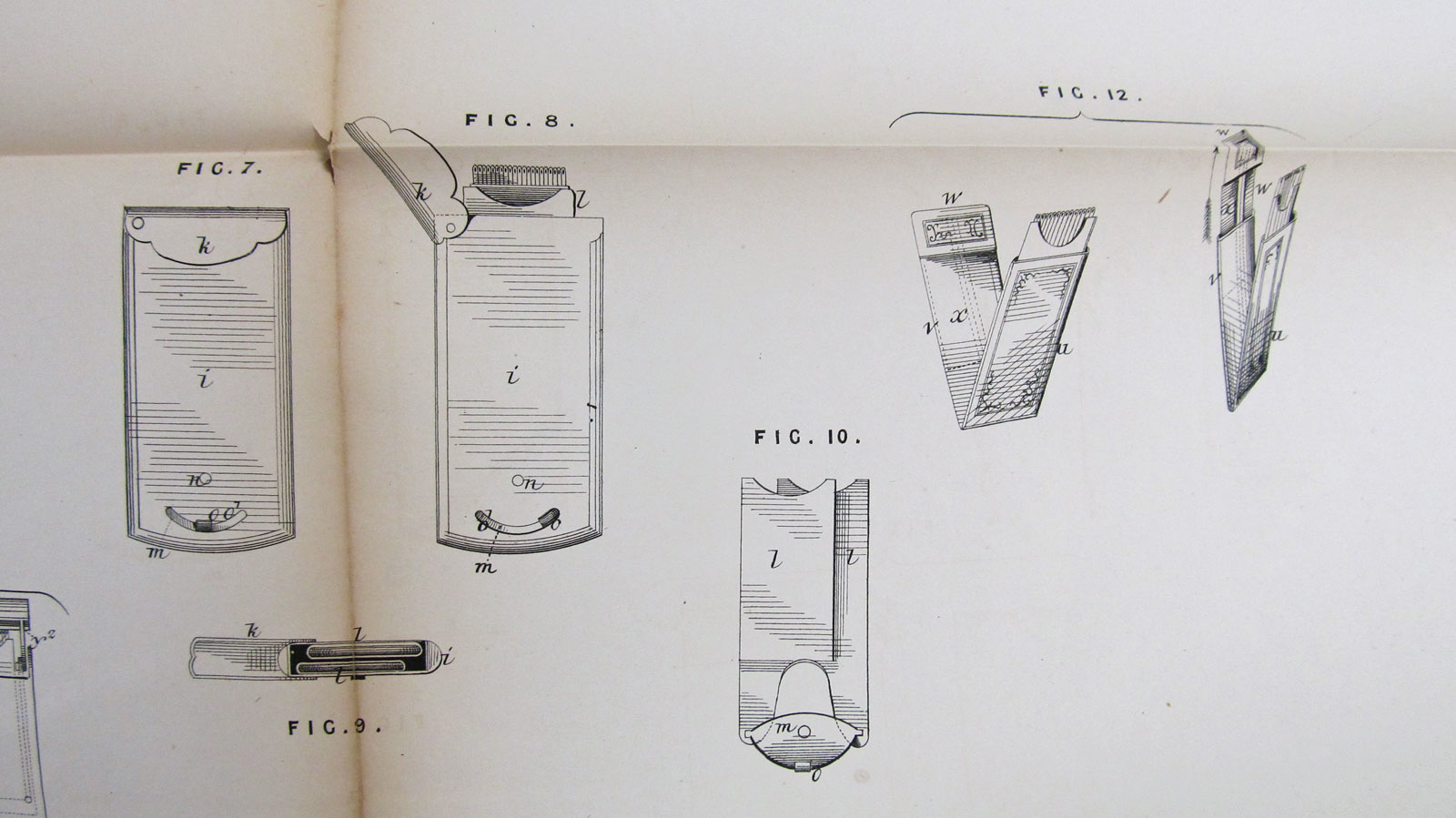

Drawing 4

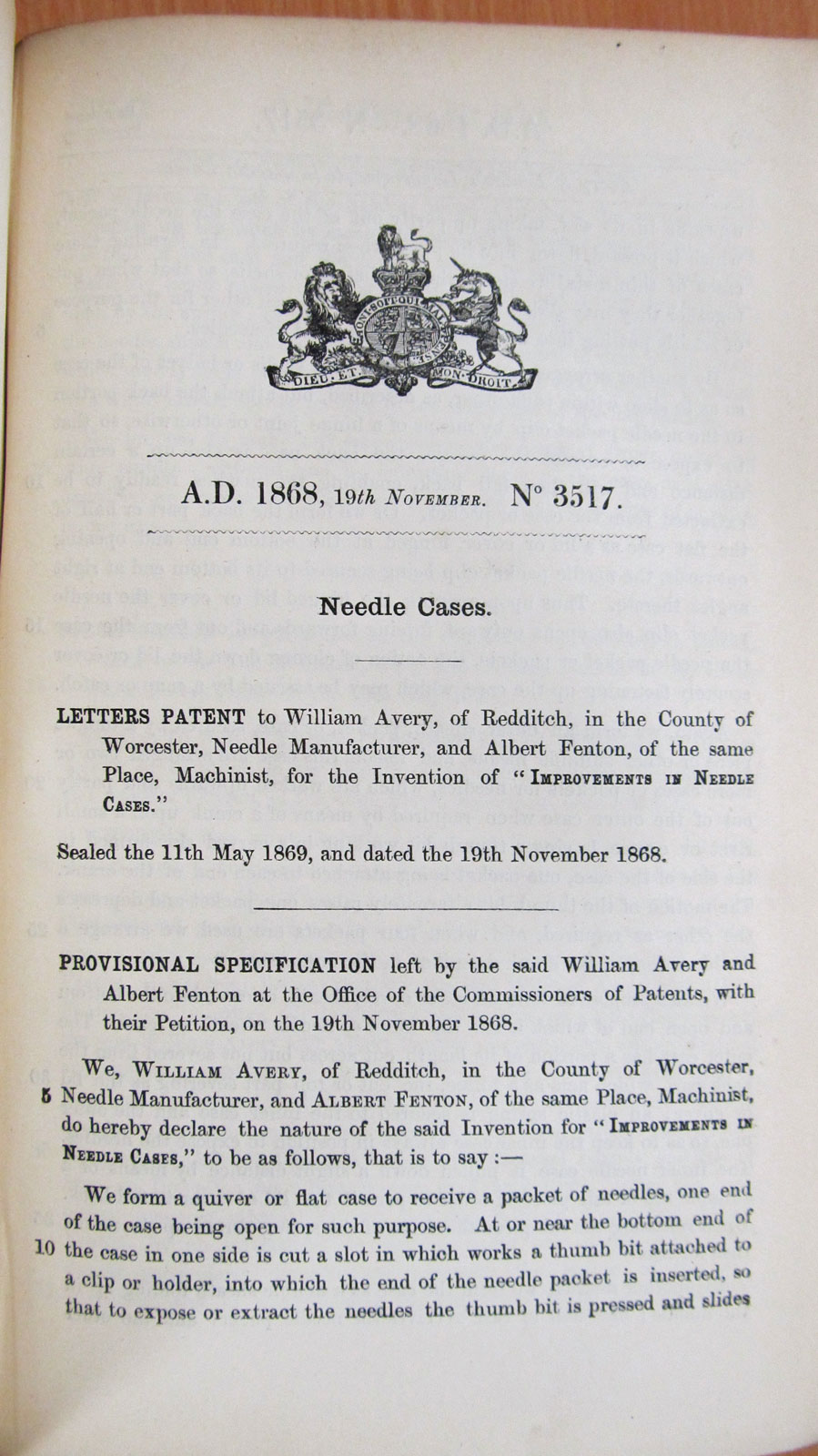

Page 1

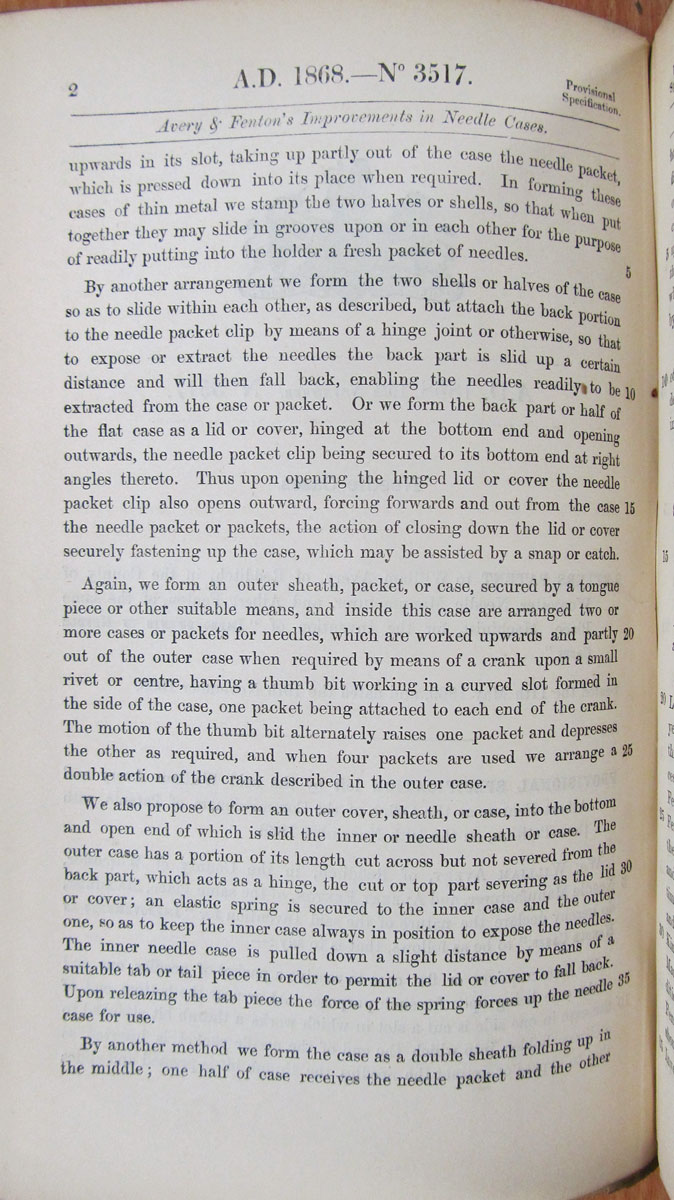

Page 2
Page 3
Page 4

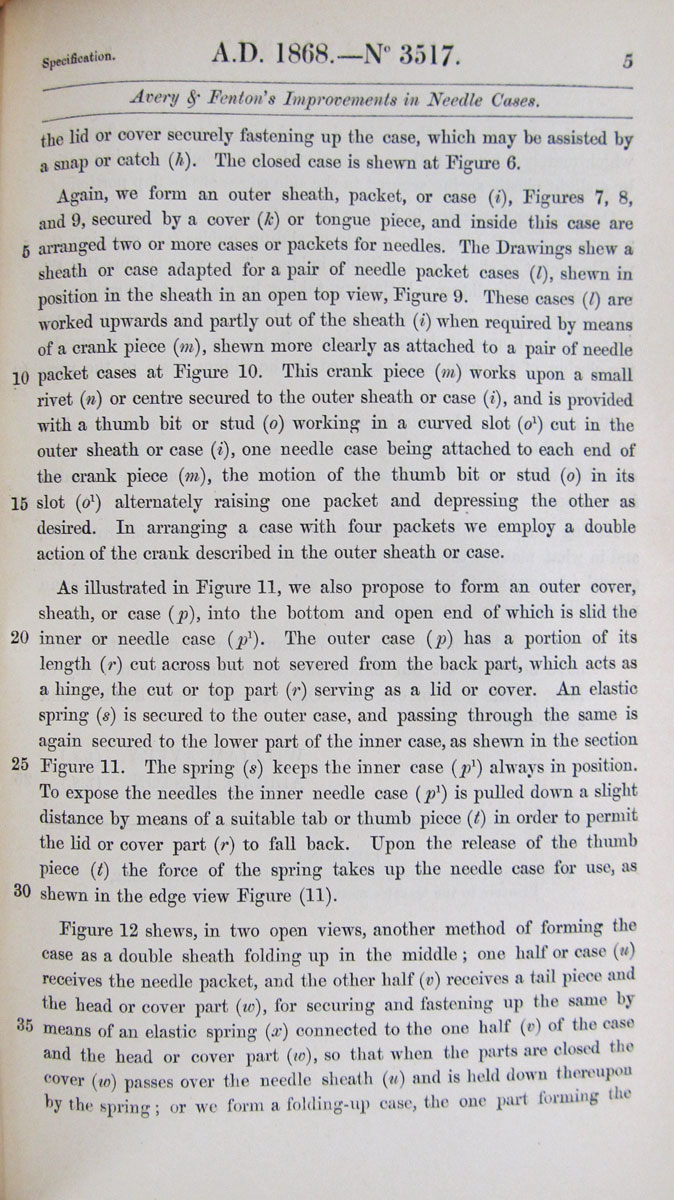

Page 5

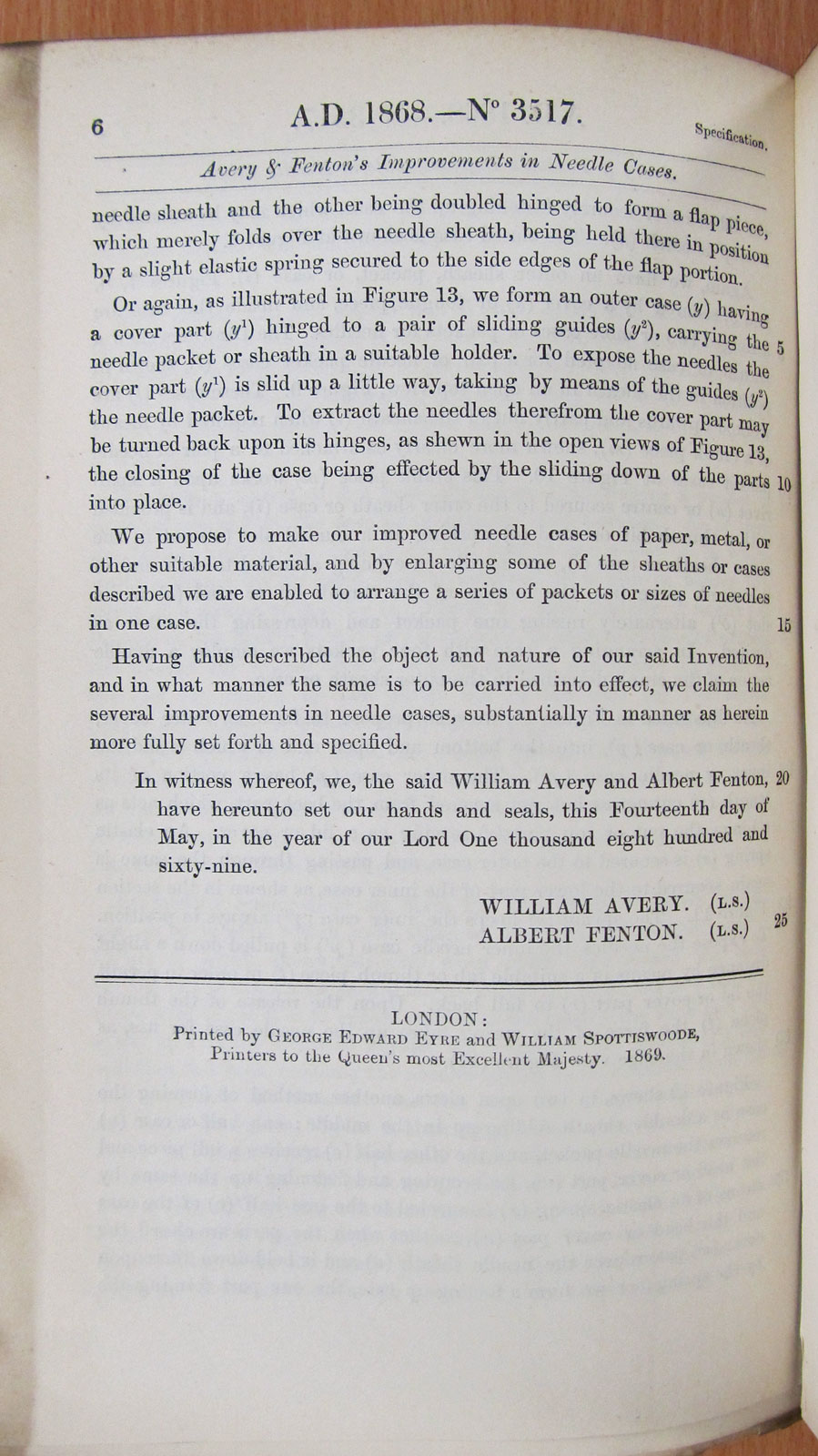

Page 6
PDF for patent 1868-3517
All mechanical patents were formally written and published in patent books in the year in which they were registered. Copies of these books can be found at a handful of libraries in the UK. This mechanical patent was originally searched at the Business and Intellectual Property Centre of the British Library in London in April/May2013. However, this library was unable to make copies at that time because the books in their collection were in a fragile state. Instead, copies were obtained from the reference desk at the British Library in Sheffield. Details regarding how the original patent research was accomplished in 2013 can be found at Patent/Design Representation Research. A PDF formated copy of this mechanical patent was discovered while visiting the Business and Intellectual Property Centre of the British Library in London in April/May 2015 and was added to this webpage in June 2015.
